Google Tensor G5 Chip and 12GB RAM Performance Overview

The release of the Google Pixel 10 marks a pivotal architectural shift in Google’s hardware strategy. By moving to the Tensor G5, Google has transitioned from a modified Samsung blueprint to silicon “confectionnée directement par Google,” signaling an attempt to eliminate the efficiency bottlenecks that plagued previous iterations.

The Tech TL;DR:

• Custom Silicon: The Tensor G5 is developed directly by Google, reducing reliance on third-party SoC designs.
• Memory Overhead: Equipped with 12GB of LPDDR5X RAM to handle high-compute AI workloads.
• Dedicated AI Pipeline: Integration of a specialized Neural Processing Unit (NPU) for on-device acceleration.

For the enterprise architect, the transition to internal silicon isn’t about marketing—it’s about the vertical integration of the hardware-software stack. When the SoC is designed in-house, Google can optimize the instruction set specifically for its AI models, potentially reducing the latency between the NPU and the LPDDR5X memory controller. This is critical for applications like MotionCam, which requires high-throughput image processing that typically strains mobile chipsets.

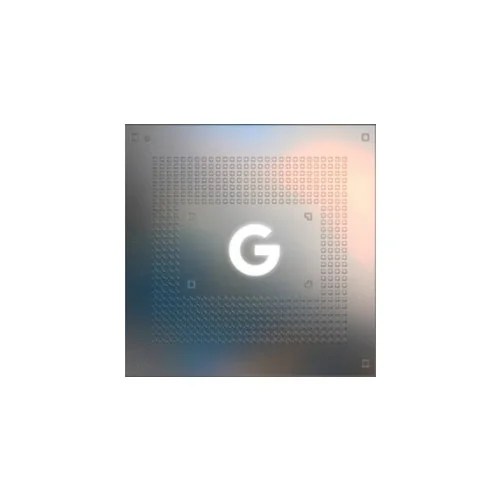

The Tensor G5: Hardware Specification Breakdown

Analyzing the shift from the G4 to the G5 reveals a focus on thermal stability and memory bandwidth. According to data from NanoReview, the Tensor G5 incorporates an AI Accelerator (NPU) and LPDDR5X memory, addressing the power inefficiency seen in earlier models. Specifically, while the Tensor G4 was noted for exceeding 8.5W to achieve peak scores—often leading to aggressive thermal throttling—the G5 aims for a more sustainable power curve.

This hardware shift solves a persistent IT bottleneck: the “thermal wall.” In enterprise deployments, devices that throttle under load lead to inconsistent performance in field-service apps. Organizations scaling their mobile fleets are now auditing their hardware lifecycles, often engaging Managed Service Providers to determine if the G5’s efficiency gains justify an early migration from G3 or G4 devices.

NPU Integration and Memory Throughput

The inclusion of 12GB of LPDDR5X RAM is a calculated move to support larger on-device LLMs. From a developer’s perspective, the bottleneck in mobile AI isn’t always raw TFLOPS, but memory bandwidth. LPDDR5X provides the necessary throughput to feed the NPU without stalling the CPU cores. This architectural synergy is what allows the Pixel 10 to handle complex image processing and real-time AI tasks without immediate battery drain.

To verify the actual hardware allocation and memory pressure on a production device, developers can interface with the Android Debug Bridge (ADB). Checking the memory stats provides a raw gaze at how the G5 handles the 12GB overhead under load:

# Check current memory usage and available RAM on Pixel 10 adb shell dumpsys meminfo # Identify SoC details and CPU architecture adb shell cat /proc/cpuinfo

The movement toward custom silicon mirrors the trajectory seen in the Android Open Source Project (AOSP) ecosystem, where tighter hardware abstraction layers (HAL) lead to fewer driver-level crashes. Though, custom silicon introduces recent risks in the supply chain. As enterprises integrate these devices into secure environments, they are deploying cybersecurity auditors to ensure that the custom Google silicon doesn’t introduce proprietary vulnerabilities or opaque telemetry channels that bypass standard SOC 2 compliance checks.

Performance Realities vs. Benchmarks

Reddit discussions among power users suggest the Tensor G5 is “Google’s most powerful chipset to date,” but the real-world utility is found in sustained workloads rather than synthetic benchmarks. The ability to maintain clock speeds without hitting the 8.5W thermal ceiling is where the G5 differentiates itself. This is particularly evident in high-bitrate camera applications that previously caused the device to dim the screen or drop frames to manage heat.

For the CTO, the question isn’t whether the G5 is “rapid,” but whether it is stable. The shift to in-house design allows Google to implement more granular control over the DVFS (Dynamic Voltage and Frequency Scaling) algorithms. This means less jitter in application performance, a key requirement for critical enterprise software. When these devices inevitably face hardware wear, the complexity of custom silicon may shift the repair landscape, increasing the reliance on certified hardware repair technicians who can handle proprietary Google components.

The trajectory of the Tensor line suggests that Google is no longer content with “fine enough” off-the-shelf silicon. By controlling the fab and the architecture, they are building a closed-loop system designed for an AI-first OS. Whether this results in a significant leap in Teraflops or simply a more stable user experience remains to be seen, but the architectural foundation is now firmly in Google’s hands. For those tracking the evolution of ARM-based mobile computing, the Pixel 10 is the first real test of Google’s ability to compete with the vertical integration seen at Ars Technica‘s analyzed competitors.
