Mofu soft robot uses volumetric actuation to increase perceived liveliness
Robotic Softness and Kinematics: Evaluating the MOFU Soft Robot’s Volumetric Actuation
Published on August 18 in the international open-access journal PLOS ONE (DOI: 10.1371/journal.pone.0354179), the study investigates how rhythmic body-volume changes—shifting from a height of 210mm to 280mm through multi-surface coordination—affect human perception of animacy compared to traditional wheeled translation alone.
The Tech TL;DR:
- Kinematic Design: MOFU combines a two-wheeled base for planar translation and rotation with a multi-surface volumetric expansion mechanism that dynamically alters its overall height between 210mm and 280mm.
- Perceptual Evaluation: In a controlled user study involving 498 participants viewing online video conditions, the combination of body expansion/contraction and rotation yielded significantly higher perceived liveliness ratings than static or single-action controls.
- Acoustic and Surface Engineering: The chassis is completely wrapped in fur to eliminate mechanical visual cues, paired with low-noise actuator components to minimize operational audio output for sensitive environments like healthcare and welfare facilities.
Volumetric Actuation and Mechanical Architecture

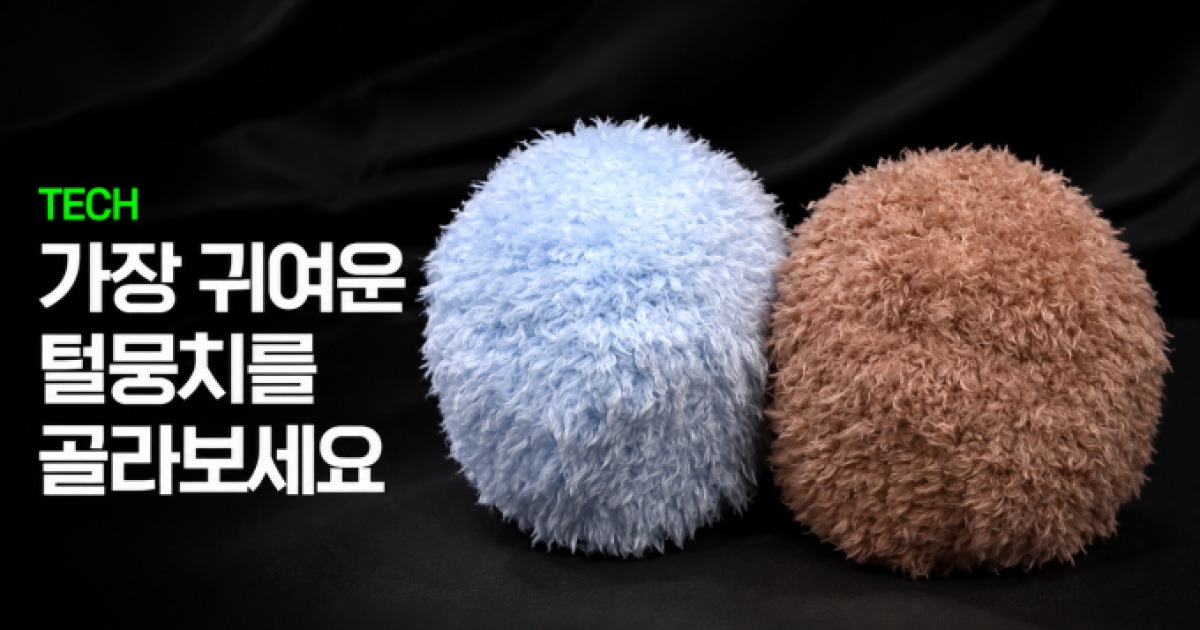

Designing companion hardware that crosses the uncanny valley requires minimizing rigid mechanical signatures. The MOFU platform addresses this by concealing its structural chassis within an outer layer of fur, effectively masking the underlying actuators. Mobility is handled by a two-wheel differential drive system capable of linear translation and pivot rotation. Crucially, the engineering team prioritized low-noise actuators to keep acoustic footprints minimal—a fundamental design constraint for deployment in care facilities and hospitals where high decibel levels induce stress in human subjects.
The primary mechanical innovation lies in the variable volume system. Rather than relying solely on posture changes via limb articulation, MOFU alters its core silhouette. Multiple exterior panels shift synchronously, expanding the vertical axis from 210 millimeters up to 280 millimeters. This rhythmic breathing-like motion mimics biological respiration patterns, introducing an organic temporal cadence to an otherwise synthetic mobile base.
Evaluating Perceived Liveliness via User Testing
To quantify the psychological impact of these kinetic variables, the research team conducted a structured visual evaluation involving 498 participants. The study exposed viewers to online video recordings divided into distinct operational conditions: static posture with expansion and contraction only, rotation only, and a combined modality featuring both volumetric pulsing and rotational movement.
According to the findings published in PLOS ONE, conditions incorporating volumetric expansion and contraction scored noticeably higher in perceived animacy and biological realism than static baselines or rotation-only movements. However, the study methodology relied entirely on asynchronous online video observation, meaning tactile feedback and acoustic interaction could not be factored into the final scoring metrics. The authors note that while visual volumetric scaling successfully conveys liveliness, fully measuring social integration requires physical deployment in unscripted environments.
Deployment Considerations for Healthcare and Welfare Robotics
Deploying autonomous robotic systems into care settings demands strict adherence to acoustic comfort and predictable kinetic profiles.
