Assessment Finds Home Infrastructure Disrupts Powerline Ethernet Adapters

Zyxel PLA6456 Adapters Encounter Unexpected Obstacles in Modern Home Environments

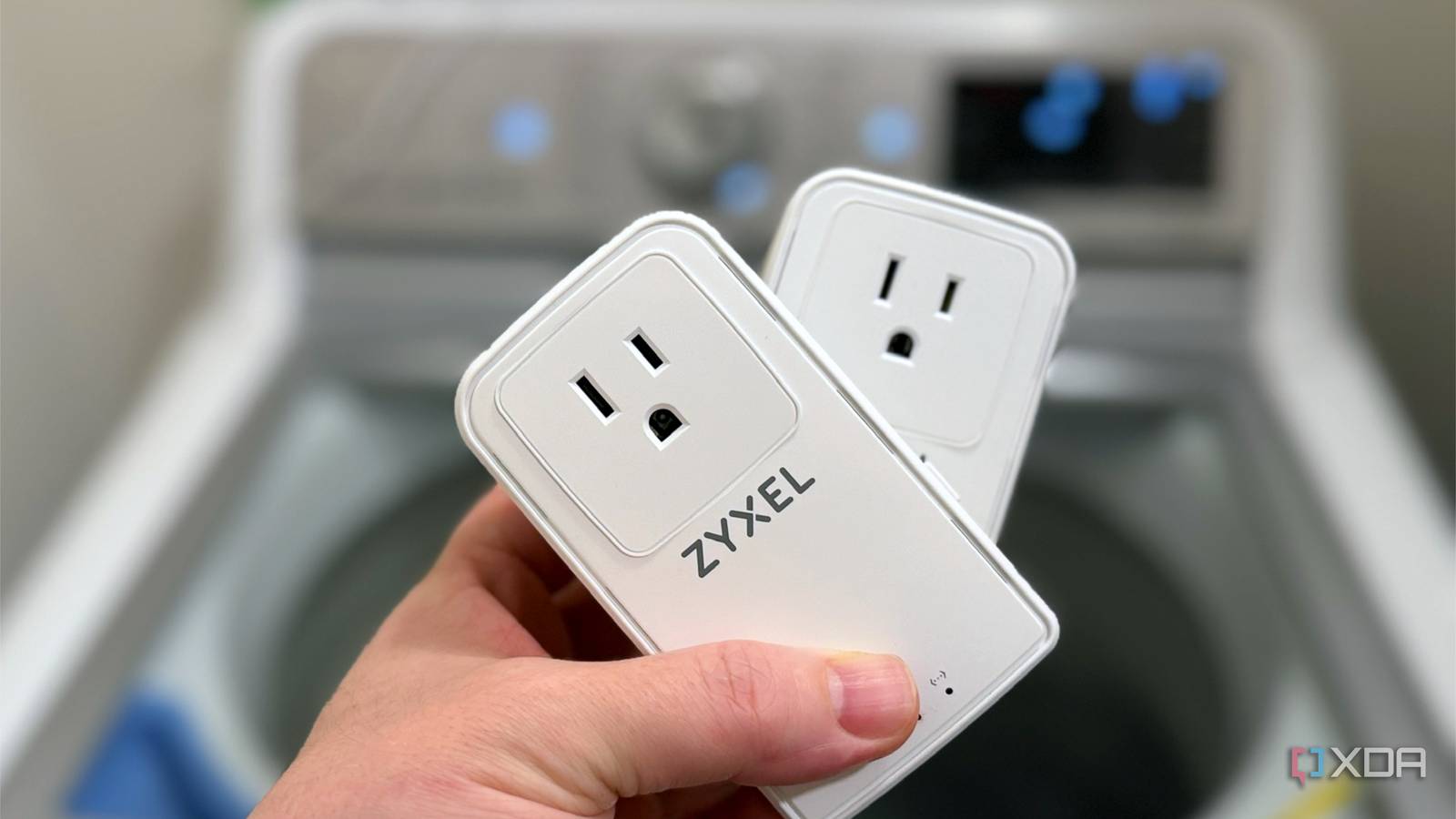

In an assessment of Powerline Ethernet adapters, testing revealed that built-in electrical infrastructure like arc-fault breakers and whole-home battery systems can disrupt data transmission over mains wiring before household appliances are even used. The evaluation tested a Zyxel PLA6456 kit, consisting of G.hn Wave 2 adapters rated for up to 2,400 Mbps, designed to push network signals through existing household alternating current lines without requiring new cable installations.

The Tech TL;DR:

• Modern arc-fault circuit interrupter (AFCI) breakers in newer homes can trip when exposed to the high-frequency signals generated by Powerline Ethernet adapters.
• Whole-home battery systems, such as the Anker SOLIX setup, route all electrical supply through inverters that can introduce significant noise and degrade Powerline data rates.
• Initial testing of the 2,400 Mbps-rated Zyxel PLA6456 kit yielded actual speeds of only 68 to 76 Mbps transmit before any heavy appliances were activated.

Low Baseline Speeds Before Appliance Activation

The testing protocol designed for the Zyxel PLA6456 adapters aimed to measure how standard high-draw devices like vacuum cleaners, space heaters, hair dryers, and cheap chargers would impact throughput using the iperf3 utility across multiple rooms. However, technical friction emerged immediately upon setup. After resolving an initial configuration issue where one adapter shipped with stray encryption settings, the units established a link that ran at just 76 Mbps transmit and 30 Mbps receive. Re-pairing the devices adjusted those figures to 68 Mbps transmit and 37 Mbps receive.

Relocating the base adapter to a quieter outlet on a separate circuit failed to improve the physical layer (PHY) rates, which remained constrained at 72 Mbps and 35 Mbps. This ruled out localized interference from desk power strips or peripheral chargers, pointing instead toward broader architectural factors inherent to the building’s electrical layout.

Powerline Adapters Trigger Arc-Fault Circuit Interrupters

The primary hardware conflicts stemmed from protective systems installed by builders to enhance safety and reliability. At approximately 3 a.m., the office circuit lost power entirely after an Eaton BR combination arc-fault circuit interrupter (AFCI) tripped. AFCI breakers monitor electrical current for the distinct high-frequency signatures characteristic of dangerous electrical arcs in damaged wiring. Because Powerline adapters deliberately inject high-frequency signals into mains wiring, they frequently trigger these sensitive safety mechanisms.

Beyond the breaker trips, the underlying low data transfer rates across unaffected circuits appeared linked to the home’s power architecture. The residence utilizes an Anker SOLIX whole-home battery system acting as the main electrical panel, with original wiring configured downstream. Consequently, every circuit draws power through the system’s inverter, a large switch-mode power supply capable of introducing continuous electrical noise onto the mains. While AFCI breakers and battery inverters serve critical safety and continuity functions, their presence creates a challenging environment for high-frequency carrier networking.

# Example command for testing baseline local network throughput
iperf3 -c 192.168.1.50 -t 60 -P 4
